Zodiac CN

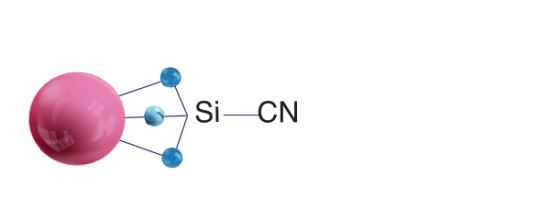

Cyanopropyl bonded phase offering rapid equilibration. Functions effectively in both normal and reversed-phase modes to resolve complex polar mixtures.
Internal Diameter (mm)
Length (mm)
Particle Size (µm)
| Product Name | Internal Diameter (mm) | Length (mm) | Particle Size (µm) | Pore Size (Å) | Quantity | Add to Cart | Wishlist |
|---|---|---|---|---|---|---|---|
| Zodiac CN : 100mm x 2.0mm,5um ZLS.CN.20.100.0510 | 2.0 | 100 | 5 | 100 |
|
||
| Zodiac CN : 100mm x 3.0mm,5um ZLS.CN.30.100.0510 | 3.0 | 100 | 5 | 100 |
|
||
| Zodiac CN : 100mm x 4.0mm,3um ZLS.CN.40.100.0310 | 4.0 | 100 | 3 | 100 |
|
||
| Zodiac CN : 100mm x 4.0mm,5um ZLS.CN.40.100.0510 | 4.0 | 100 | 5 | 100 |
|
||
| Zodiac CN : 100mm x 4.6mm,3um ZLS.CN.46.100.0310 | 4.6 | 100 | 3 | 100 |
|
No products found in this phase.
Rapid Equilibration and Versatile Performance in Both Normal and Reversed-Phase Modes.
A versatile cyanopropyl bonded phase known for its rapid equilibration. It functions effectively in both normal and reversed-phase modes to resolve complex polar mixtures.
| USP Listing | L10 |
|---|---|
| Phase Type | Normal Phase (NP) |
| Phase Ligand | CN |
| Pore Size (Å) | 100 |
| Surface Area (m²/g) | 350 |
| Pore Volume (mL/g) | 0.9 |
| pH Range | 2-8 |
| Particle Size (µm) | 3,3.5,5,10 |
| Particle Technology | Fully Porous |
| Carbon Load (%) | 7% |
| End Capping | Yes |
| Max Temperature (°C) | 70 |
ZODIAC Catalogue 2026Download PDF
