Zodiac C30

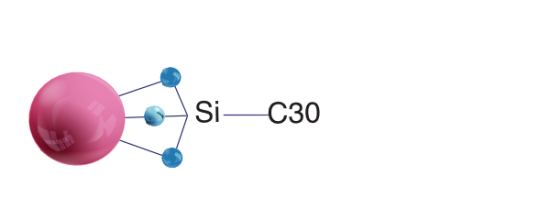

Triacontylsilane phase delivering exceptional shape selectivity. Essential for the baseline separation of complex geometric isomers, long-chain lipids, and carotenoids.
Internal Diameter (mm)
Length (mm)
Particle Size (µm)
| Product Name | Internal Diameter (mm) | Length (mm) | Particle Size (µm) | Pore Size (Å) | Quantity | Add to Cart | Wishlist |
|---|---|---|---|---|---|---|---|
| Zodiac C30 : 150mm x 4.6mm,5um ZLS.C30.46.150.0520 | 4.6 | 150 | 5 | 100 |
|
||
| Zodiac C30 : 100mm x 2.0mm,5um ZLS.C30.20.100.0520 | 2 | 100 | 5 | 100 |
|
||
| Zodiac C30 : 100mm x 3.0mm,5um ZLS.C30.30.100.0520 | 3 | 100 | 5 | 100 |
|
||
| Zodiac C30 : 100mm x 4.0mm,3um ZLS.C30.40.100.0320 | 4 | 100 | 3 | 100 |
|
||
| Zodiac C30 : 100mm x 4.0mm,5um ZLS.C30.40.100.0520 | 4 | 100 | 5 | 100 |
|
No products found in this phase.
Superior Shape Selectivity for Baseline Resolution of Complex Geometric Isomers and Lipids.
A premium triacontylsilane phase delivering exceptional shape selectivity. This column is essential for achieving baseline separation of complex geometric isomers, long-chain lipids, and carotenoids.
| USP Listing | L62 |
|---|---|
| Phase Type | Reverse Phase (RP) |
| Phase Ligand | C30 |
| Pore Size (Å) | 100 |
| Surface Area (m²/g) | 300 |
| Pore Volume (mL/g) | 0.9 |
| pH Range | 2-8 |
| Particle Size (µm) | 3,3.5,5,10 |
| Particle Technology | Fully Porous |
| Carbon Load (%) | 22% |
| End Capping | Yes |
| Max Temperature (°C) | 60 |
No applications found.
